SWING FRAME CUT-OFF MACHINE

Swing frame cut-off machine for foundry applications – Rebel
Heavy-duty pendular cut-off machine for cast iron and steel
Rebel swing cut-off system for riser and gating removal
Industrial cut-off equipment for foundry operations.

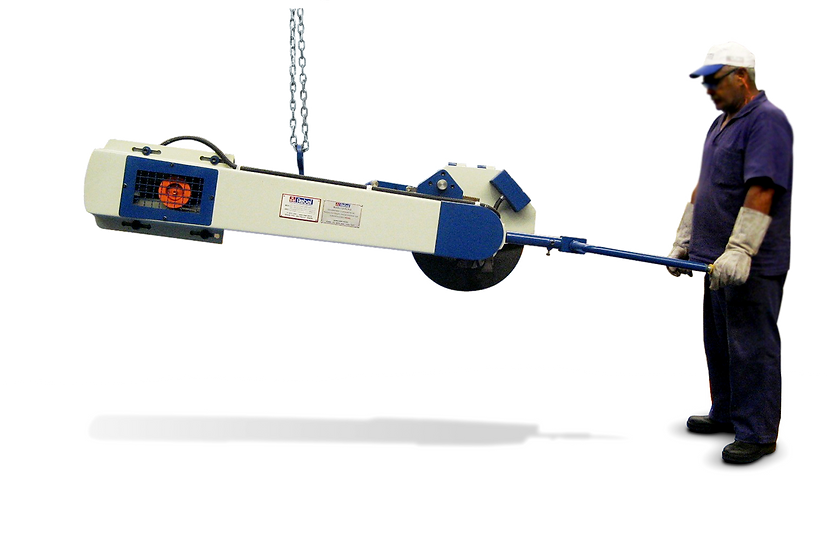

The Rebel Swing Frame Cut-Off Machine is engineered for fast, precise and low-effort cutting of cast iron and steel foundry components. Ideal for risers, gating systems and heavy casting removal, delivering high performance with full OSHA, CE and NR12 compliance.

CUTTING SPEED

80m/s

HEAVY-DUTY

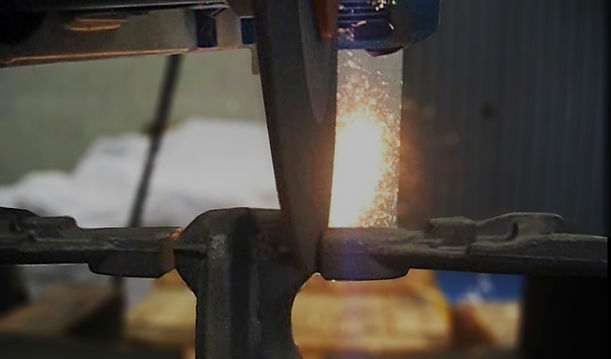

The Rebel Swing Frame Cut-Off Machine combines high-torque cutting performance with ergonomic swing-frame handling, allowing operators to remove risers, gating systems and excess material from cast iron, steel and ductile iron components. The balanced swing arm reduces fatigue and increases control during the cut, while the reinforced chassis supports continuous-duty operation in heavy foundry environments. The system accommodates multiple abrasive or cutting wheel configurations and maintains stability even under aggressive cutting conditions. Compliant with OSHA, CE and NR12, the machine includes integrated guarding, emergency stop systems and electrical safety features. Suitable for automotive foundries, agricultural castings, mining components, steel fabrication plants and heavy industrial foundries.

Swing Frame CUT-OFF  - Rebel
Swing frame cut-off machine for foundry applications – Rebel
Heavy-duty pendular cut-off machine for cast iron and steel
Rebel swing cut-off system for riser and gating removal
Industrial cut-off equipment for foundry operations

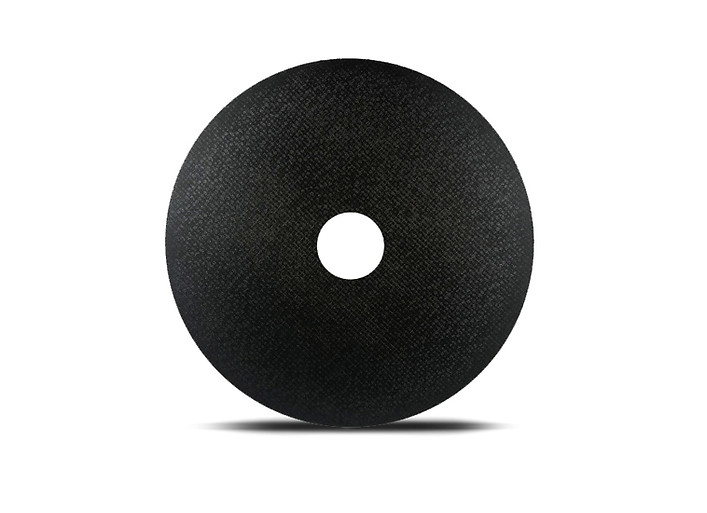

CUTTING DISC

Designed to operate with different types of abrasives disc, the Swing Frame Cut-Off has
a cutting speed of 80m/s, with low vibration.

disc size
Diameter 20" (508mm)
Width 0.18" (4,5mm)
internal diameter 1" (25,4mm)



Swing frame cut-off machine for foundry applications – Rebel Heavy-duty pendular cut-off machine for cast iron and steel Rebel swing cut-off system for riser and gating removal Industrial cut-off equipment for foundry operations

SAFETY

Safety is a top priority for Rebel, and the Swing Frame Grinder is equipped with numerous safety features and is fully compliant with all required industry standards.

 ANGULATION SYSTEM

The Rebel's Swing Frame Cut-Off has angle grinder system. This rotation allows to cutting the
side parts with total efficiency, safety and practicality. The operator can set the angle from 0° to 90°

Swing Frame Grinder (rotation).jpg
Swing Frame Grinder (tilt).jpg
Swing Frame Grinder (swing).jpg
Guidao EP.png

HANDLEBAR

HEAVY-DUTY

STEEL STRUCTURE

EMERGENCY BUTTON

TURN OFF

TURN ON

Swing Frame Grinder Eletric Panel.png

The Swing Frame Grinder comes with an

electrical panel according to the technical

safety standards.

ELECTRIC PANEL

TECHNICAL INFORMATION

Swing Frame Cut-Off.png
Swing Frame Sanding Belt Machine

SWING FRAME
SANDING BELT

Swing Frame Grinder Machine

SWING FRAME
GRINDER

STANDARDS

Rebel machines are designed and manufactured in full compliance with CE Directives (European Union), OSHA/ANSI requirements (United States and the Americas), and CSA standards (Canada).

They also meet Brazilian safety regulations, including NR-10, NR-12, and NR-17.
